Product Description:

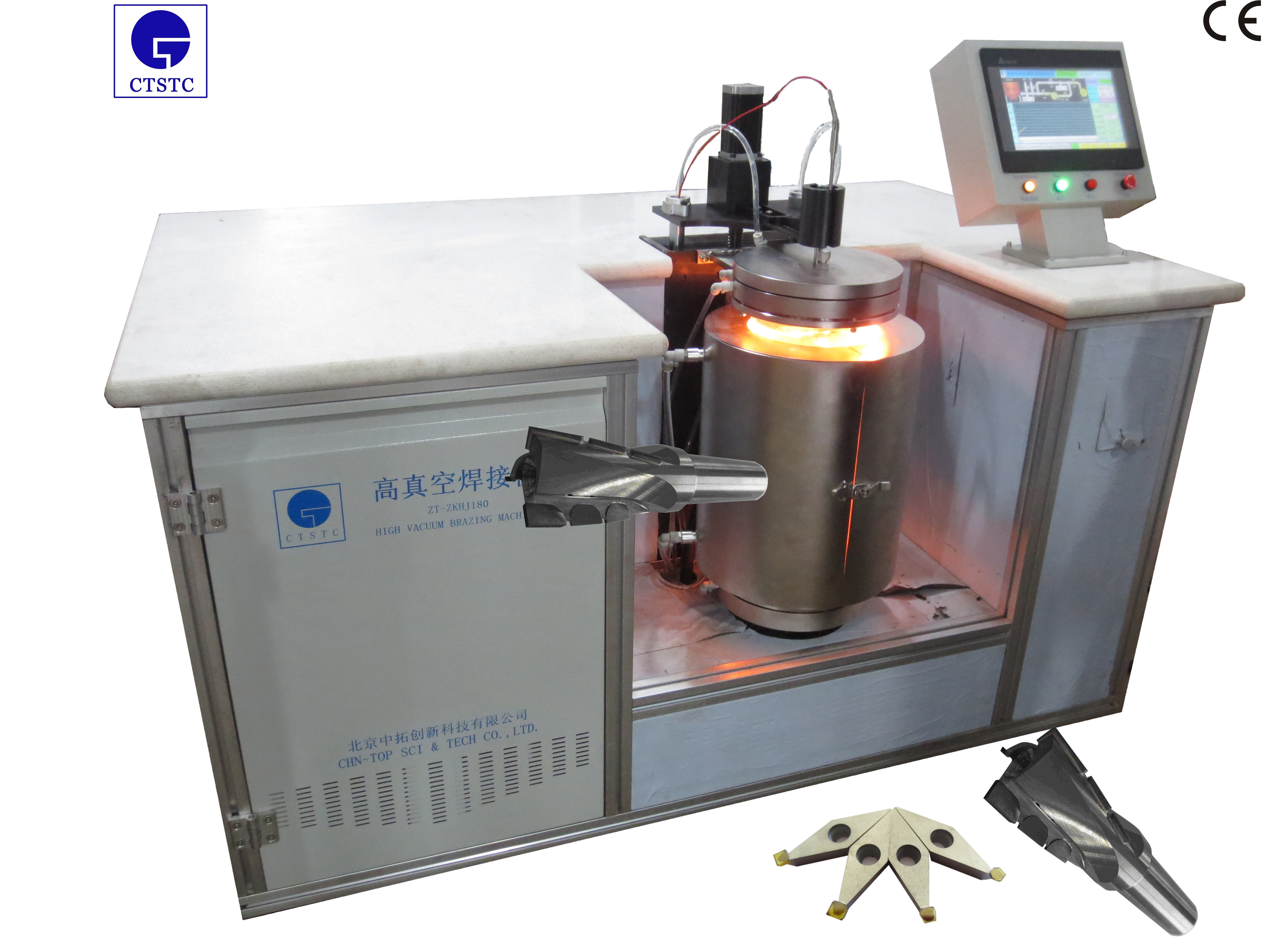

The Automatic Vacuum Machine for PCD/PCBN is a high-quality vacuum brazing system specially designed for ultra-hard materials. This machine is perfect for a wide range of applications, including cutting tools, wear parts, and other high-performance tools. The vacuum brazing process includes four main steps:
- Cleaning: The vacuum process ensures that all surfaces are completely clean and free of contaminants before brazing.
- Fixing Flux: The machine is equipped with a fluxing system that fixes the flux onto the surface of the material, ensuring a reliable and consistent brazing process.
- Drying: The chamber is heated to a temperature of 200℃ for 30 minutes to dry the flux and prepare the surface for brazing.
- Brazing: The ultra-hard materials are brazed in the vacuum chamber, ensuring a strong, reliable bond.
The machine also features water cooling to keep temperatures under control and prevent overheating during the brazing process. The chamber size is 180*500mm, making it suitable for a wide range of applications. The machine type is a vacuum welding/brazing machine, ensuring a high level of accuracy and precision. The operation mode is automatic, making it easy to use and ideal for high-volume production.
The Automatic Vacuum Machine for PCD/PCBN is the perfect solution for anyone looking for a reliable, high-quality vacuum brazing system for ultra-hard materials. Whether you are producing cutting tools, wear parts, or other high-performance tools, this machine is sure to meet your needs. So why wait? Invest in the best and take your production to the next level with the Automatic Vacuum Machine for PCD/PCBN!
Keywords: Automatic Vacuum Machine for PCD/PCBN, Vacuum Brazing System for Ultra hard Materials
Features:
- Product Name: Vacuum Brazing Machine
- Chamber Size: 180*500mm
- Machine Type: Vacuum Welding/Brazing Machine
- Power Supply: 380V-3Phases-5Wires/20KW
- Max Vacuum Rate: 10^-2 Pa
- Operation Mode: Automatic
- Features: Vacuum Brazing System for Ultra hard Materials
- Keywords: Vacuum Brazing Machine, Vacuum Welding Machine
Applications:
The Vacuum Brazing Machine is equipped with a Quartz Glass Tube Chamber and can withstand a maximum temperature of 950°. The machine type is a Vacuum Welding/Brazing Machine and has water cooling for efficient operation. The Vacuum Brazing Machine is designed for PCD/PCBN Inserts Brazing, making it ideal for industrial applications.
The Vacuum Brazing Machine is perfect for industries such as automotive, aerospace, and mining. It can be used for brazing various ultra-hard materials such as diamond, PCD, CBN, and ceramics. The Vacuum Brazing Machine is an essential tool for manufacturing and repairing tools and components that require high durability and precision.
The Vacuum Brazing Machine is also suitable for R&D purposes and is an important tool for researchers and scientists in the field of materials science. The Vacuum Brazing Machine can be used for testing and developing new materials and components that require high durability and precision.
CTSTC's ZT-ZKHJ280 Vacuum Brazing Machine is a reliable and efficient tool for industrial and research applications. It is a Vacuum Brazing System for Ultra hard Materials, Vacuum Welding Machine, and Vacuum Brazing Device all in one. The Vacuum Brazing Machine is a valuable investment for any organization that requires high-quality, durable, and precise tools and components.
Payment for the Vacuum Brazing Machine can be made through TT, LC, or Western Union. Contact CTSTC for more information or to place an order.
Customization:
Model Number: ZT-ZKHJ280
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 45-60 days
Payment Terms: TT/LC/Western Union
Chamber Size: 180*500mm
Max Vacuum Rate: 10^-2 Pa
Vacuum Process: 1.Cleaning,2. Fixiing Flux,3.Drying At The Temperature Of 200℃ For 30mins,4.Brazing
Power Supply: 380V-3Phases-5Wires/20KW
Chamber: Quartz Glass Tube
Product Customization Services:
- Vacuum Brazing Device
- Tungsten Carbide Vacuum Brazing Machine
- Vacuum Brazing System for Ultra hard Materials
Packing and Shipping:
Product Packaging:
- The Vacuum Brazing Machine is securely packed in a wooden crate to prevent any damage during transportation.
- The crate is then sealed and labeled with important product information such as the product name, model number, and quantity.
Shipping:
- The Vacuum Brazing Machine will be shipped via a reliable and trusted carrier service.
- The shipping cost will be calculated based on the destination and weight of the product.
- The estimated delivery time will be provided to the customer upon request.
- The customer will be notified of the shipment tracking number once the product has been shipped.
