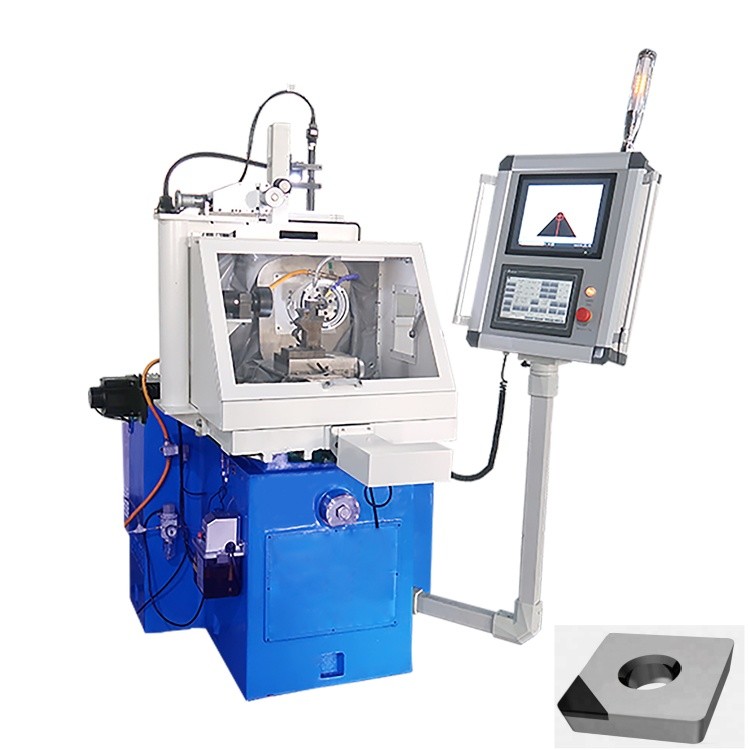

Product Description:
One of the key features of the PCD Grinding Machine is its image magnification capability. The machine has a 45-250 times digital zoom that allows the operator to see the grinding process in great detail. This feature makes it easier to monitor the grinding process and make any necessary adjustments to achieve the desired results.
The PCD Grinding Machine also has a grinding wheel oscillation frequency that is adjustable from 0-45/min. This feature allows the machine to be used for a wide range of grinding applications, from rough grinding to fine finishing.
The PCD Grinding Machine is an ideal tool for precision engineering applications that require the grinding of PCD/PCBN materials. It is easy to use, efficient, and highly accurate, making it a popular choice among engineers and other professionals who work with these materials.
If you are looking for a high-quality PCD/PCBN materials grinder, the PCD Grinding Machine is an excellent choice. With its powerful spindle, adjustable oscillation frequency, and digital zoom capabilities, this machine is sure to meet all of your grinding needs.
Technical Parameters:
| Grinding Wheel Inclination | -13°~+24° |
| Grinding Wheel Height Adjustment | 140mm |
| Readout of Linear Gratings | 0.001mm |
| Optical Tube Distance | 300mm |
| Grinding Wheel Size | 150*40*40mm(D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min(adjustable) |
| Grinding Wheel Oscillation Distance | 0-40mm(adjustable) |
| Dimension | 1200*1168*1530mm(L*H*W) |
| Grinding Pressure | 0-450N(adjustable) |
| Spindle Speed | 0-42000RPM(adjustable) |
Technical parameters of PCD/PCBN Tools grinder, Hard materials grinder, PCD grinding machine
Applications:
The PCD Grinding Machine has a grinding wheel traveling range of 170mm and an image magnification of 45-250 times (digital zoom). It is ideal for grinding hard materials such as diamond, tungsten carbide, ceramics, and other composite materials. The machine's dimension is 1200*1168*1530mm (L*H*W) and it is packed in a plywood box for safe and secure delivery.
The Grinding Wheel Oscillation Frequency of the PCD Grinding Machine is adjustable from 0-45/min, which makes it suitable for various grinding tasks. The machine is easy to operate and has a user-friendly interface. It is suitable for both small and large-scale production with a delivery time of 45-60 days.
Product Application Occasions
- Automotive Industry
- Aerospace Industry
- Mechanical Industry
- Tool Manufacturing Industry
Product Scenarios
- Grinding PCD and PCBN tools
- Grinding hard materials such as diamond, tungsten carbide, ceramics, and other composite materials
- Small and large-scale production
The PCD Grinding Machine is a perfect fit for industries that require high precision and accuracy in their grinding operations. It is a reliable and efficient solution for grinding hard materials, and its adjustable features make it suitable for various grinding tasks. Customers can pay using TT, LC, or Western Union methods. Upgrade your grinding operations with the CTSTC ZT-90CNC PCD/PCBN Grinding Machine today!
Support and Services:
The PCD Grinding Machine is a high-performance equipment used for grinding polycrystalline diamond (PCD) tools. Our product technical support and services include:
- Installation and commissioning of the machine
- Training for machine operation and maintenance
- Technical consultation for optimal use of the machine and tool grinding
- Diagnostic and repair services for any issues with the machine
Our team of experienced technicians and engineers are dedicated to providing the best possible support and service to ensure the smooth operation and longevity of your PCD Grinding Machine.
Packing and Shipping:
Product Packaging:
- 1 PCD Grinding Machine
- 1 Grinding Wheel
- 1 User Manual
Shipping:
- Ships within 1-2 business days
- Free standard shipping within the continental US
- International shipping available at an additional cost
FAQ:
Q1. What is the brand name of the PCD grinding machine?
A1. The brand name of the PCD grinding machine is CTSTC.
Q2. What is the model number of the PCD grinding machine?
A2. The model number of the PCD grinding machine is ZT-90CNC.
Q3. Where is the PCD grinding machine manufactured?
A3. The PCD grinding machine is manufactured in China.
Q4. Does the PCD grinding machine have any certification?
A4. Yes, the PCD grinding machine is CE certified.
Q5. What are the payment terms for purchasing the PCD grinding machine?
A5. The payment terms for purchasing the PCD grinding machine are TT, LC, and Western Union.
